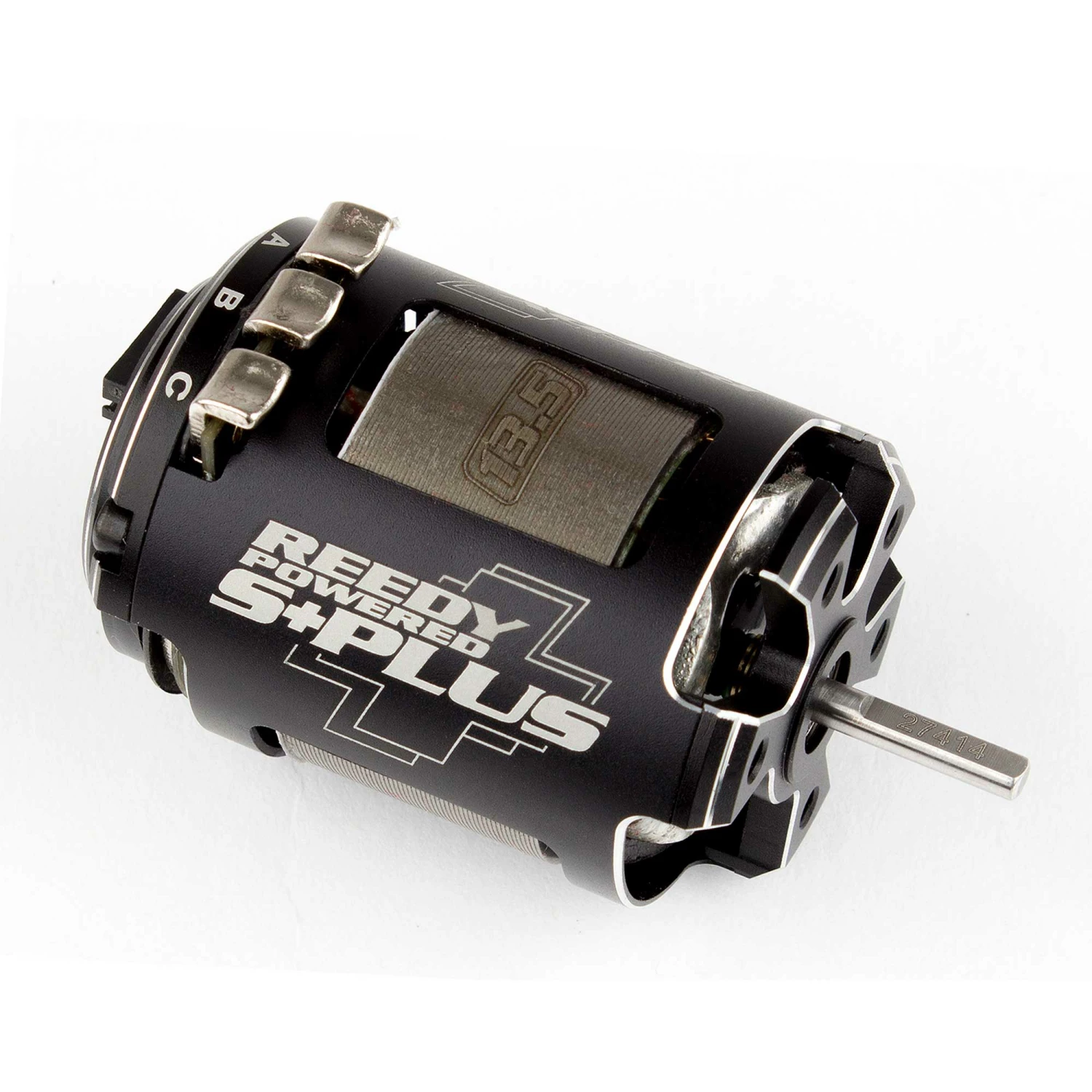

Team Associated Reedy S-Plus Spec Class 1-2S Sensored Brushless Motor, 13.5T for Motors

Reedy’s most powerful spec motor ever!

The heart of the S-Plus is a thin leg stator that allows shorter wire lengths, resulting in a massive reduction in resistance. This reduction in resistance, hovering just above the minimum allowed by R.O.A.R., means that the S-Plus is Reedy’s most powerful spec motor ever!

The thin-leg stator offers another benefit — weight reduction. By reducing the motor’s weight, handling and chassis turning flexibility improves. Machined parts such as the can, timing cap, back plate, and sensor assembly have been placed on a diet. An entire section of the front plate has been removed to reduce weight with an added benefit of allowing the user to re-position it to lower CG depending on which type of car it is being installed in. A savings of nearly 30g has been achieved! Additionally, the motor’s length has been reduced by more than 2mm, which aids left/right balance and moves mass towards the center of the chassis.

A high-strength, balanced rotor is more powerful that its predecessor. Because the rotor is interchangeable with those in 540-M3 spec motors, a wide range of tuning options are already available. Precision stainless steel ball bearings have been fitted to accommodate high RPM loads with exceptional efficiency and reliability.
